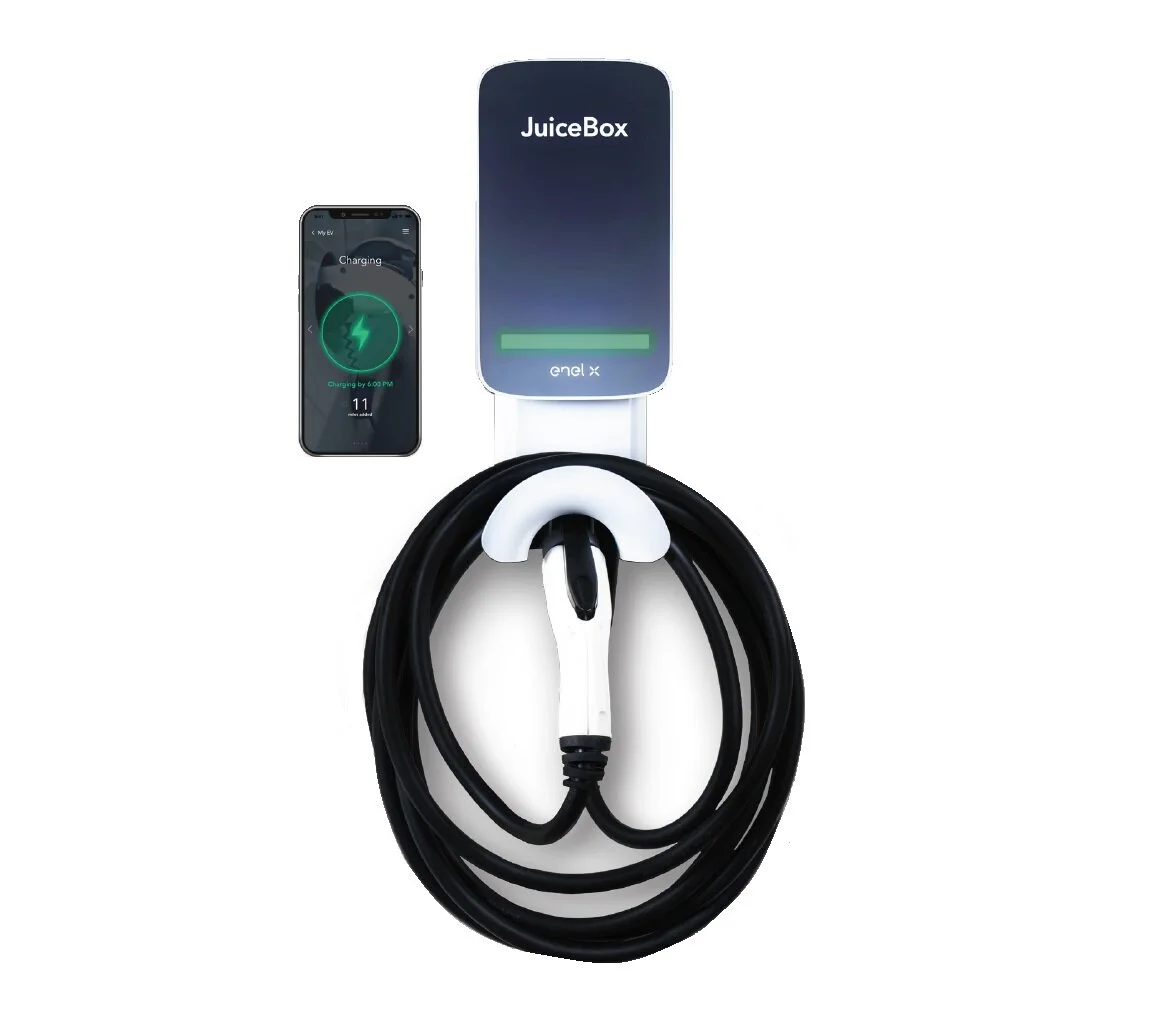

JuiceBox Residential
JuiceBox is a Level 2 smart home charging station with the essential features and power you need to charge your EV. JuiceBox is the only line of charging stations that affords both direct user control and smart grid optimization, accessible through our software platform, JuiceNet®.
• Control charging anywhere, anytime via our mobile app and web portal • Reduce your energy costs by scheduling charging when rates are low • Select a cleaner electricity mix to reduce your emissions • Participate in smart grid programs to further lower the cost of owning and driving your EV
JuiceBox is a Level 2 smart home charging station with the essential features and power you need to charge your EV. JuiceBox is the only line of charging stations that affords both direct user control and smart grid optimization, accessible through our software platform, JuiceNet®.
• Control charging anywhere, anytime via our mobile app and web portal • Reduce your energy costs by scheduling charging when rates are low • Select a cleaner electricity mix to reduce your emissions • Participate in smart grid programs to further lower the cost of owning and driving your EV
JuiceBox is a Level 2 smart home charging station with the essential features and power you need to charge your EV. JuiceBox is the only line of charging stations that affords both direct user control and smart grid optimization, accessible through our software platform, JuiceNet®.
• Control charging anywhere, anytime via our mobile app and web portal • Reduce your energy costs by scheduling charging when rates are low • Select a cleaner electricity mix to reduce your emissions • Participate in smart grid programs to further lower the cost of owning and driving your EV
Specifications
Electrical Characteristics
›› Power: 32A, 7.7 kW / 40A, 9.6kW / 48A, 11.2kW / 80A, 19.2kW maximum (adjustable)
›› Single phase input: nominal voltage 208/240
VAC, voltage range 177 – 264 VAC
Input Cable & Plug
›› 2.3 ft (0.7m) with NEMA 14-50 plug
›› 2.3 ft (0.7m) UL-rated hardwire conduit
& wiring
Output Cable & Connector
›› 25 ft cable
›› J1772 standard compliant
JuiceNet® App
›› Equipped with JuiceNet software to track usage, control charging, manage power output, and various other features
Smart Grid Connectivity ›› Built-in WiFi connectivity (802.11 b/g/n 2.4 GHz)
Firmware
›› End-to-end AES-256-based encrypted protocols
›› 90-day, 15-minute interval data storage
›› Over-the-air (OTA) upgradeable firmware
Enclosure
›› Dynamic LED lights show charging status: network connectivity, charging in progress, delaying charging, standby
›› Weatherproof, dust-tight, polycarbonate enclosure: NEMA 4X
›› Quick-release wall mounting bracket included
›› Built-in security lock and integrated cable management
›› Operating Temperature: -40°F to 140°F (-40°C to 60°C )
Weight & Dimensions
›› Main enclosure: H: 18.5 in (469 mm) x W: 6.8 in (173 mm) x D: 5.8 in (147 mm)
›› 15 lbs (6.8 kg)
Codes & Standards
›› FCC Part 15 Class B, NEC 625 compliant, ENERGY STAR®†
›› OpenADR 2.0b compliant
Safety ›› UL and cUL Listed
Warranty ›› 3-year limited product warranty (parts only) for use under normal residential operatingconditions
Made in USA ›› From domestic & imported parts
